Wraith ESL VCSEL laser Compact ultra high performance VCSEL laser for dedicated NV
Night Saber Wraith ESL VCSEL laser
*mount options 10 working days*
World wide shipping
Shipping is calculated at checkout when your address details are added.

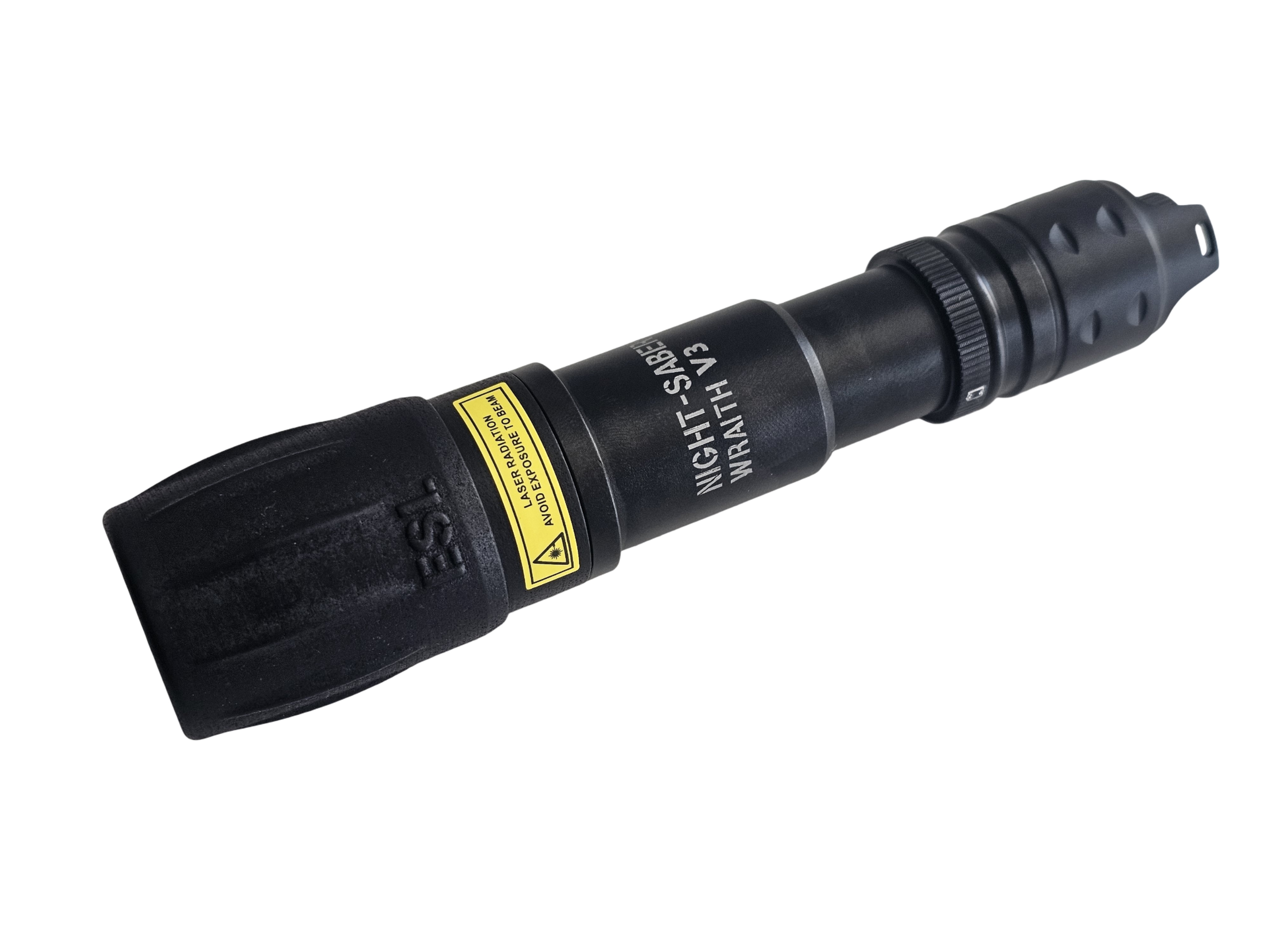

Night Saber Wraith ESL VCSEL Laser – Extreme Night Vision Performance
Step Into the Future of IR Illumination
Introducing the Night Saber Wraith ESL—a powerhouse in a compact form. This extra-small laser packs game-changing performance, outshining competitors like the PBIR, DFK Ward & Blade on modern night vision systems such as the Hikmicro Alpex 4K.
Whether you're hunting in pitch darkness or scouting the terrain with pinpoint accuracy, the Wraith ESL offers unmatched clarity, precision, and range.
🔦 Watch it in action above —amazing performance on the Hikmicro Alpex 4K, even in flood mode!
Why Choose the Wraith ESL?
✔ Outperforms Industry Leaders – Tested against leading IR illuminators and proven superior
✔ Two Options – Choose 850NM for maximum distance or 940NM for high stealth
✔ Dual Beam Adjustment – Fine-tune your focus with a fast, artifact-free lens system plus rear flood control
✔ Ultra-Lightweight & Compact – Only 230g, yet delivers incredible IR output
✔ Rotary Dimmer Control – Precise brightness settings with LED power indicator
✔ Full-Screen Night Vision Performance – Designed for Hikmicro Alpex 4K, Arken HD, and other dedicated NV systems
Precision Optics & Adjustable Beam Control
🔹 Spot Mode: Focus down to a tight, perfectly aligned beam for long-range target identification
🔹 Flood Mode: Open up the beam for full-screen illumination, maximizing visibility
With dual adjustment points, you get complete control—fine-tune via the lens/head, or adjust rear flood settings using the knurled adjuster near the tail cap.
💡 Optimized for modern digital night vision scopes—no excess bulk, just pure IR power.
Built for Tactical & Hunting Performance
✅ Lightweight, Yet Powerful – Designed to reduce weight while delivering elite illumination
✅ Precision Mounting – Available in Bare Lamp or with 30MM fully adjustable weaver/picatinny mount
✅ Durability & Safety – Constructed for rugged reliability, with a safe VCSEL laser system
Specifications
| Feature | Specification |
|---|---|
| Weight | 230 g |
| Dimensions | 175 mm x 38 mm |
| Wavelength Options | 850 NM or 940 NM (940NM = stealthier, but shorter range) |
| Lens System | Fast-focus with extra flood adjustment |
| Mounting Points | 25 mm & 30 mm (30mm maximizes adjustment range) |

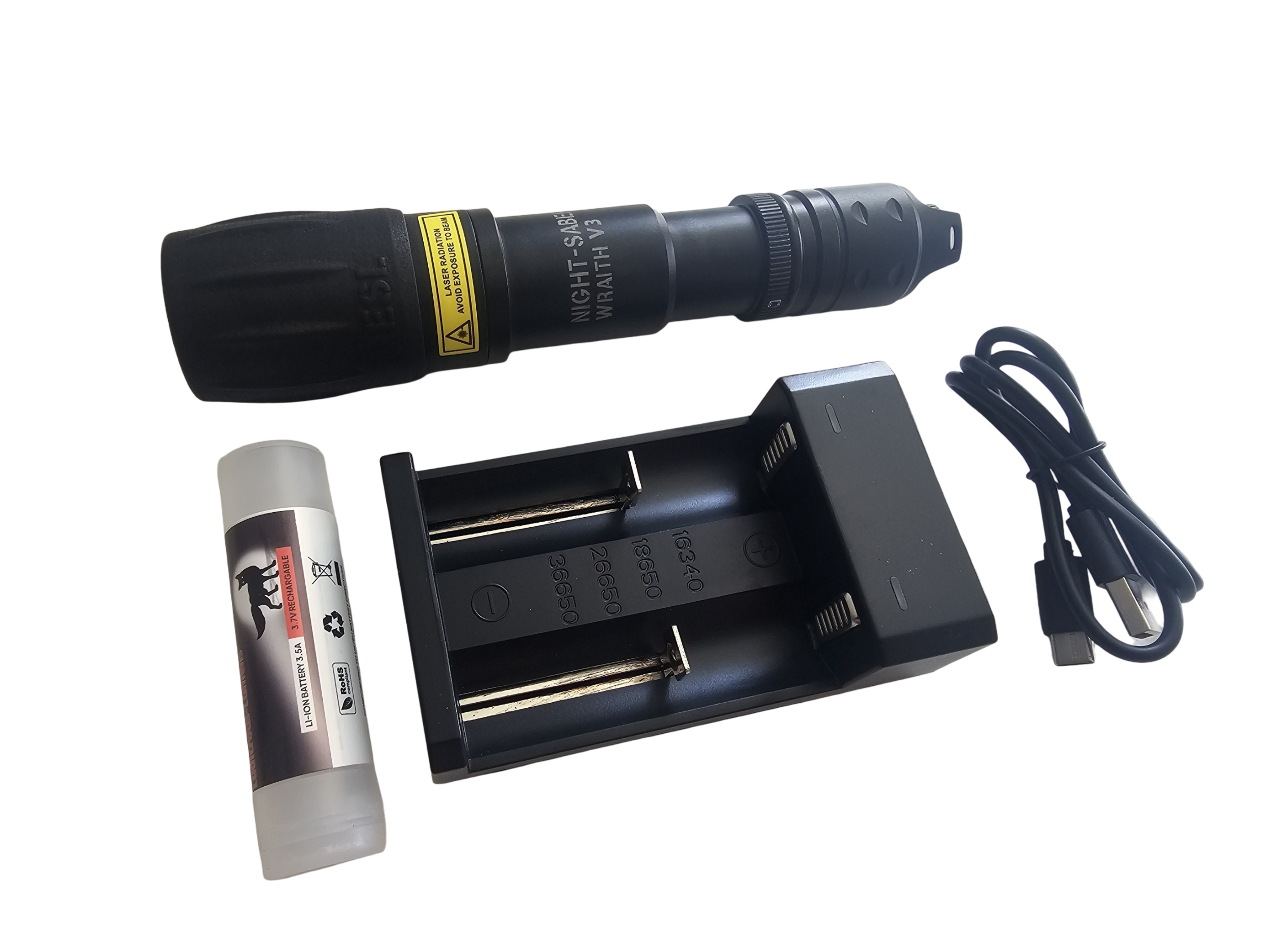

| Power Source | Single 18650 cell (Battery not included; must be 3000mAh+) |
| Beam Control | Dual adjustment—lens focus + rear flood control |
| Indicator Light | Rotary dimmer with LED "ON" indicator |
Important Safety Guidelines
🚨 This is NOT a laser pointer—it is an infrared laser lamp. Handle it with care.
✔ Always remove the battery when not in use or before changing the lens
✔ Never look into the lens or expose your body to the beam
✔ Keep away from minors and store securely
✔ Do not point at reflective surfaces
✔ Treat this laser with the same care as a firearm
💡 VCSEL technology is safer than traditional lasers, but responsible handling is essential.
Please ensure when changing laser modules that the battery is removed & the head is unscrewed via head section with the warning label & not the rotating section or damage can incur.
Order Today & Upgrade Your Night Vision
Choose your setup:
✅ Bare Lamp

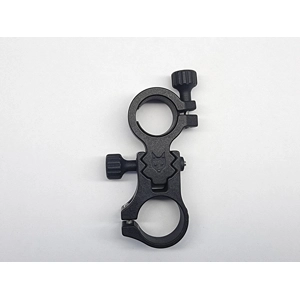

✅ Fully Adjustable 30MM Mount – Secure, precise aiming for superior IR alignment
💡 See video footage of the Wraith ESL in action on Ludicrous Lumens & YouTube!
Please note we reserve the right to change the components/finish if we feel it improves the performance/quality of the Wraith laser system.
850NM
Hicmicro 4K @ 258M with flooded Wraith ESL
940NM
Product Code: f2H7zNj
Brand: Night saber
Product Condition: New
Wraith ESL
Darren Mills
07 March 2025
I was looking for a IR for use with a drone pro. Contacted ludicrous lumens and was given first class service. I was advised to go for the Wraith ESL, a great little light, surprisingly small and light but packs a lot of power.
Good features - works well with Arken 5-20 and C50
TG
23 February 2025
Very pleased with the unit. Plays well with Arken and surprisingly the C50 liked it too as I d always been told they prefer LED. Definitely extends range of the C50 compared to even a powerful LED and much better target definition when using the zoom on it. Able to confidently take longer shots than I have ever done previously (230m rabbit off sticks with C50 and let s be honest that s pretty pixelated by that point!) Was worried about speckles / artefacts due to VCSELL but didn t notice them in either scope unless hyper focussing the beam. Quick setup (because I d never had to do this before): 1) rotate the lamp in your mount to match the orientation of the rectangular light beam to the screen on your scope. It s much more envelope shaped than I was used to. 2) scale the rectangle of light to match your scope s zoom (fill the screen) by rotating the metal collar behind the plastic front end. This can go AMAZINGLY small and intense (so would probably be good for add-ons?) 3) While shooting, adjust flood-to-spot by rotating the plastic collar at the front as you would for any other lamp. This is quite a fine adjustment and you definitely need to get the step above right first. Service was simply amazing with very quick email replies. Made for me AND despatched on the same day that a restock of parts arrived. And with RMSD I had it in my hands about 30min before I left for my trip away. Thanks Andy this unit gave me some cracking shots.
Absolutely first class service
William Ham
05 February 2025
Absolutely first class service ,ordered and sent so promptly , not had the weather to try the laser out yet but looks and feels well made and alot lighter
Wraith ESL IR torch
Patrick Gray
11 November 2024
Recently purchased this to pair with my Hik Alpex 4k Lrf and all I can say is wow. I bought a Vulpine Mk3 from Andy a few years ago with a Wraith 2x torch which I still have and use so I was excited when I heard about the ESL version. It's small, compact, really powerful and unusually for a laser IR provides a really clean image. Highly recommended.
Wraith 940nm ecl vcsel
Steven Bower
10 November 2024
An excellent 940 lr, it has the least visible glow of any 940nm torch ive ever used, Using it on my hik alpex 4k lrf, good to 300 m Superbly clean image
Wraith ESL VCSEL
Philip Soanes
06 November 2024
Wow what a bit of kit, using this on top of my Hikmicro Alpex 4K LRF and now can clearly see 500yrds and beyond, not shooting foxes at this distance but but really nice to be able to get a good image at that kind of distance, torch is small but certainly packs a punch, really powerful and I'm glad I made the purchase.
best I have used so far,
D hunter
07 October 2024
Hi, weather hasn't been too kind but, I've managed to get out with the laser and mount. I have used various lasers and mounts over the years. The laser from you certainly is the best I have used so far, being able to easily adjust from spot to flood and then use the front adjustment to fine tune. The set up gives a clear picture at ranges more than I would shoot at The mount is better than my previous one being easier to fit and gives a much better adjustment of the beam first kill using it was fox at 262yards Dave
Great IR
Nigel White
13 September 2024
I have had a Dragonfly for the last 10 years and it served me well, but died the other day. I decided to buy a Wraith ESl after discussion by email with Ludicrous Lumens and it arrived (earlier than expected ) yesterday morning. I had a quick test drive with it about 8.00pm yesterday befor going foxing and it seemed to perform well- although it wasn't fully dark.After a few plays with it with Roe and Rabbit as the 'targets' it's a mighty fine IR - at least as good if not better than the Dragonfly and I seemed to get a sharper image at higher magnification. It's not an extensiv test, but I am very pleased so far.
Very powerful
Robert
11 September 2024
Really powerful laser that gives a super crisp picture on the Alpex 4K We have compared against multiple lasers and LED IR lamps including the DFK PBIR Sirius & Solaris as well as the Ward on the Alpex the Night saber spanks the lot of them. Robert M
really good IR lamp
Peter right
12 July 2024
Really nice lamp Much better than all my other IR lights with the pulsar. LL supplied it with the adjustable Qd mount which is a fantastic little mounting solution, very impressed overall with the product & the service given.
mind blow
Dylan cartwright
09 July 2024
Ridiculously good on a Alpex 4K LRF, works a treat with the pard 007 as well.
Wraith esl
Kevin Jordan
09 July 2024
Went out last night in the rain tried the wraith esl could not believe how far you can see 400 yards plus in the rain fantastic bit of kit many thanks kev
Reply From Ludicrous lumens:
Thanks for the review Kevin
Glad you like it.
This is with a 940NM,a 850NM will be considerably more powerful again:-)
Regards Andy
Clear and powerful
John Stevens
25 May 2024
Excellent quality and range. Perfect for my Hikmicro 4 LRF
next level of IR for the size
Josh Clarke
02 May 2024
Really nicely designed illuminator that is giving out a seriously impressive amount of IR for its compact size. Super smooth lens adjustment that does not move the focused beam at all off of centre & a large flood closer work. Fantastic image quality the the Alpex 4K & my shooting partners early Apex. Love the 30mm fully adjustable mounting as well, a true joy to use. Josh
Great company
David Mackee
01 May 2024
Great company to deal with Andy was very helpful and courteous he recommended the night sabre wraith ESL ir torch to me I'm glad I waited for it absolutely brilliant light definitely left my existing one in the shade and half the weight to carry I have no hesitation in recommending it and Andys company a definite 5 stars
Reply From Ludicrous lumens:
Hi David
Glad you like it, the little Wraith V3 ESL gives out an incredible amount of light for its size.
